Single Pole Insulated Conductor Rails Tensioner
  • Single Pole Insulated Conductor Rails Tensioner

Single Pole Insulated Conductor Rails Tensioner

INQUIRYBACK
Country of origin        Taiwan
Product Type Single Type
Insulated Trolley System
Conductor Material Copper
Insulator Material Plastic
Power supply 600V
Rail Rated Current 200A
Collector Rated Current 100A

Our rails are suitable for Japanese crane system

● Easy Installation   ● Save Money

● Skype Teaching if necessary, If need

  • Single Pole Insulated Conductor Rails Tensioner







    Why you choose I.T.S.?

    - You can get competitive price!

    - You can get fast and best service!

    - Click INQUIRY today for Winner’s Choice!


    - Because we are original Insulated conductor rail manufacturer, we can crack customer's
       tech questions directly.

    - Add our Skype Account: its168 now and save your huge time.

  • Features:

    1.
    Taiwan I.T.S. is CE / ISO qualified approved Safety Insulated Trolley Systems manufacturer.

    2.
    Taiwan I.T.S. copper contact surface of insulated conductor rail is oxyacid free copper, which better electric conduction and corrosion resistance is.

    3.
    Our PVC plastic compound material of conductor rail comes from Taiwan best plastic manufacturer, NAN YA PLASTICS CORPORATION.
    *PVC Compound for Flexible Extrusion is possessed of all the characteristics such as toughness, acid, alkali, and voltage resistance, etc.

    4.
    Single Pole Insulated Conductor Rail can stand 600 V AC/600V DC Working voltages and a current consumption to 200A in indoor or outdoor.

    5.
    A safe, stable and economical choice. It is also suitable for a curved track electric hoist (The degree of bending over than R 1.5m), and circular installations.

    6.
    It can be randomly assembled for a wide range of applications in cranes such as bridge cranes, loading bridges, large tonnage gantry cranes, container cranes, overhead cranes
    etc.

    7.
    In addition, it can apply in automated production industry, AS/RS systems, monorail systems, data and signal transmission, high-voltage installations, conductor rail trench
    systems etc.

    8.
    Single Pole Insulated Conductor System can be mounted in horizontal and vertical curves and is suitable both for main power and also signal current.

    9.
    This series is not only used for a short power supply distance, but also can be as a bus bar to supply power over a long distance.

    10.
    Taiwan I.T.S. conductor rail is
    heat resistance (PVC material up to 75 degrees Celsius).


    Installation Notice:

    1.When the single insulated conductor rails have cambers, the lateral installation need to be adopted.

    2.
    The hangers are installed every 0.5 meter from the starting point of the turning. If the straight place need to install one every 1.5 meters.

    3.

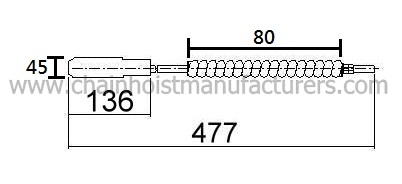

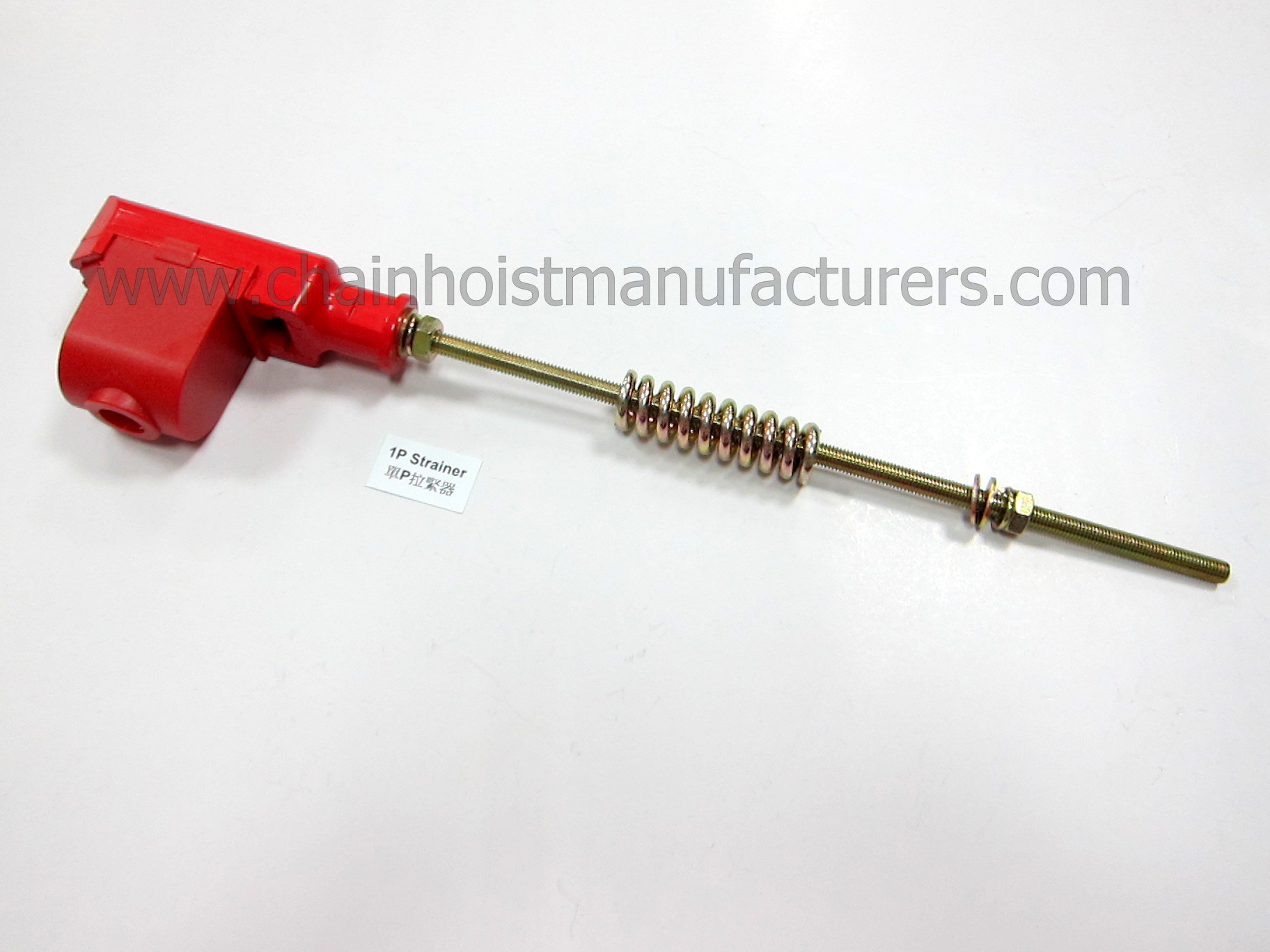

    ITS 1P strainer for single insulated conductor rails must be installed at the place which is about 5mm higher than the hanger. It can prevent the water to flow to the power-source place along the insulated conductor rail; hence the short circuit won’t occur.

    4.
    Taiwan ITS single insulated conductor rails are not suitable for use in the place with high acid and alkali contents.

    5.
    The silica gel is better to be coated on the joint place of the strainer and the insulated conductor rail when outdoor use.
