2 Ton Single Girder Electric Wire Rope Hoist
  • 2 Ton Single Girder Electric Wire Rope Hoist

2 Ton Single Girder Electric Wire Rope Hoist

Country of origin:        Taiwan
Product Type: Electric Wire Rope Hoist
Capacity: 2 Ton
Hoist Model: AV021-AV022-AV023
Lifting Speed(M/Min): Hoist Speed: 3-6(50HZ),3.6-7.2(60HZ)
Trolley Speed: 14.5(50HZ),17.4(60HZ)
● Safety Guarantee   ● ISO Proven
● Easy Installation     ● Tech Consulting


  • Features:

    Taiwan ITS Single-Girder Electric Wire Rope Hoist is fit for light industry with swift and convenient characteristic.

    The direct electromagnetic brake is accurate powerful and easily adjusted.

    The all-planetary deceleration gears are made of high frequency heat treated medium carbon steel.

    Using JIS Number 6 wire rope provides good quality and flexibility.

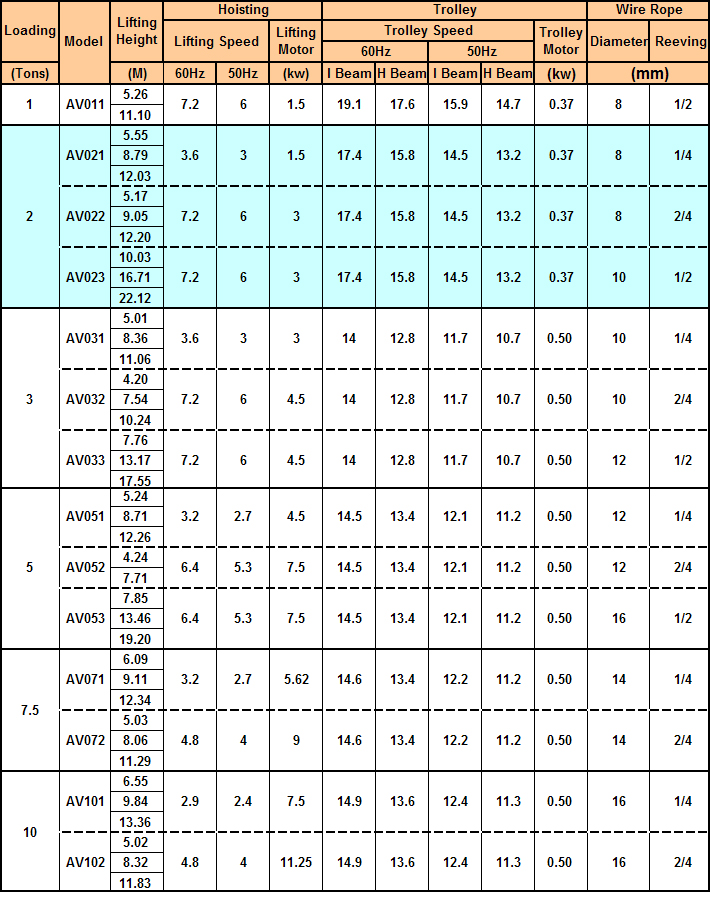

    2 Ton Single Girder Electric Wire Rope Hoist - SPECIFICATIONS

    Why you choose I.T.S.?
    - You can get competitive price!
    - You can get fast and best service!
    - Click INQUIRY today for Winner’s Choice!

    - Because we are original electric wire rope hoist manufacturer, we can crack customer's
       tech questions directly.
    - Add our Skype Account: its168 now and save your huge time.

    2 Ton Single Girder Electric Wire Rope Hoist - SPECIFICATIONS

  • 1. Hoisting Motor: Reserved for squirrel-cage inductor motor and the outer casting are made of gray cast iron. Hoisting motor is classified as 30% ED with 180 times/hour switch frequency. (60% ED is optional.)

    2. Gear Box:
    Small size of all-planetary deceleration gears can run with a larger torque and low noise.

    3. Wheel:
    Turning from S45C material, heat-treated surface, bearing high pressure and good abrasive resistance.

    4. Wire Rope:
    The rope has at least 5 times safety factor, high tensional strength, wear-proof flexible steel can endure bending fatigue.

    5. Up and Upper Limited Switch:
    When the hook touched the emergency limit switch, it cuts off main power supply immediately.

    6. Brake System: DC electromagnetic brake
    disc have faster reaction and 150% braking force.

    7. Eccentric Shaft:
    Auto- adjustment (patent no. 40602), can run on uneven and still sustain the load evenly.

    8. Control System:
    Electromagnetic switch includes the mechanical linkage: coil includes surge protector.

    9. Drum:
    16 times greater than the diameter of wire rope. It meets to the safety standard of fixed crane.

    10. Sheave: Made of gray iron casting
    . It is 18 times the diameter of wire rope.

    11. Push-Button Switch:
    Reinforce plastic shell, one piece design, good insulation is able to endure the impact and resist fire. Control cable includes high- strength steel wire to strengthen the security of suspension.

    12. Hook Assembly:
    Forged and heat-treated by alloy steel with high strength, high resistance against wear. It is with thrust bearing enabling hook to swivel 360 degrees and 4 times safety factor with safety latch to ensure operational security.
