2 . Model COB 21, COB22, COB23 (Direct Operation) silver contactors are huger than other models, so it can control three phases motor directly. ( COB 213 for single phase motor only)

3 .Model COB 213A (Direct Operation) is specially used for DC current motor directly.

10 Buttons Crane Switch Control

10 Buttons Crane Switch Control

10 Buttons Crane Switch Control

Remark. S: Single Speed (1-step), D: Dual Speed (2-step)

                  ON/ Off: Power On/ Power Off

                  EMS: Emergency Stop Button- Red mushroom type or Normal type

                  C: Choice ( ON/OFF Push Button Switch, Emergency Stop Button- Red mushroom type or Normal type, Red Indicator

                  Lamp, Twist Button, Key Switch, or no action etc.)

                  Above is our standard model, and all of our ITS pendant controls can be customized by buyer.

A .Taiwan ITS Pendant Control Type: Direct Operation

10 Buttons Crane Switch Control

B .Taiwan ITS Pendant Control Type: Indirect Operation

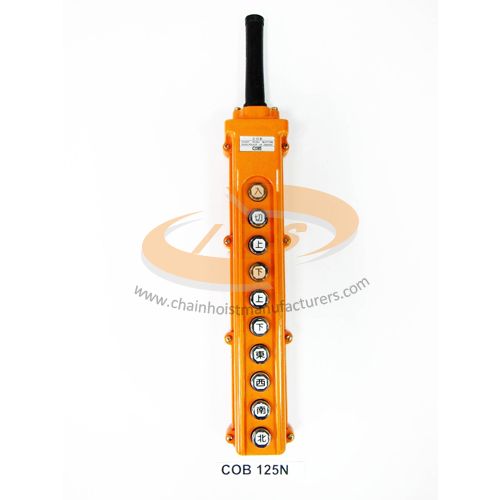

 10 Buttons Electric Hoist Control

C .Taiwan ITS Pendant Control Type: Indirect Multi-functional Operation

10 Buttons Crane Switch Control

10 Buttons Crane Switch Control

10 Buttons Crane Switch Control Discription

1 .ITS pendant stations are typically used for crane applications, but can also utilized to control other types of motors and electrical and mechanical machines.

2  .ITS series hoist pendant controls are water and dust resistant also suitable for outdoor application.

3 .ITS series button switches used for power supply Input (X1 & X2): 380 V AC or 48 V AC, 50/60 HZ, rated current up to 15A.

4 .Button Sticker：ON, OFF, U, D, E, W, S, N, ↑(Arrow), ↑↑(Double Arrows)

5 .ITS pendant controls are quality custom products. We have different options you can choose, for example, Emergency Stop Button, Twist Button, Key Twist Button, Red Indicator Lamp etc.

10 Buttons Crane Switch Control

10 Buttons Crane Switch Control

10 Buttons Crane Switch Control
